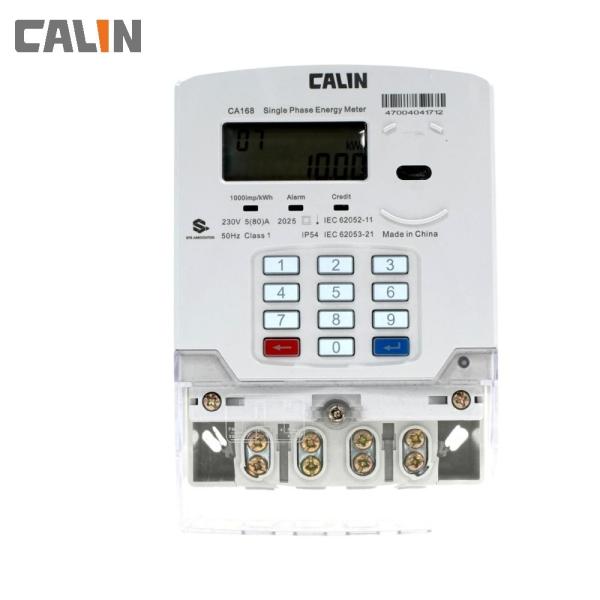

Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions

Contact Now

Dual-source Ordinary Single-phase Keypad Meter - 230V 5(60)A, RF and LoRa Communication, STS-certified with CIU Option
Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions
Calin designs and produces cost-efficient prepaid electric meters ideal for AMR/AMI solutions in both residential and industrial applications. Our meters feature robust anti-tamper protection and support off-grid solar power integration.
Key Benefits
  • RF and LoRa communication (available on request)
  • Time of Use (TOU) functionality with multi-tariff and holiday settings
  • Easy connection to User Interface Unit (UIU) for split-type applications
  • 15-year designed lifespan
  • Customizable balance alarm settings
Technical Parameters
Parameter Specification
Nominal voltage Un 220/230/240 V
Limited voltage 50%~130%Un
Nominal frequency fn 50-60Hz+5%
Basic current(Ib) 5A
Maximum current(Imax) 60A
Starting current(Ist) 0.04%Ib
Active energy constant 1000imp/kWh
Accuracy as Active energy to IEC62053‐21 Class1.0
Power consumption in Voltage circuit <2W <8VA
Power consumption in current circuit <1VA
Operating temperature -25℃ to +70℃
Storage temperature -40℃ to +85℃
Main Features
  • Detection of significant reverse energy (SRE)
  • Automatic disconnection on overload and no credit
  • Advanced anti-theft protection
Certifications
Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions
Detailed Images
Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions
Our Service
Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions
After-Sales Service
  • Installation and usage training
  • Overseas engineer support
Related Products
Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions
Three phase keypad prepaid energy meter
91.8% Response Rate
Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions
Din Rail Prepaid energy meter
91.8% Response Rate
Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions
Split type Prepaid energy meter
91.8% Response Rate
Packing & Delivery
Dual-source STS Keypad Meter with 230V 5(60)A and 15 Year Designed Life in Compact 155x120x52mm Dimensions
Packaging Specification Details
Size 123 (L) * 456 (W) * 789 (D)
Weight 18kg
The standard packaging is a wooden box (Size: L*W*H). For European exports, the wooden box will be fumigated. For tight container spaces, we can use PE film packaging or accommodate special customer requests.
